Overview

Basic Info.

Model NO.	YVF-250M-4
Casing Protection	Closed Type
Number of Poles	4
Starting Mode	Variable Frequency Starting
Certification	ISO9001, CCC, CE,RoHS
Brand	KTZ
Framesize	YVF-250M-4
Output Power	55KW
Voltage/Frequency	380-415V/660-720V 5-100Hz
Cooling Method	IC411 30-60Hz, IC416 5-100Hz
Mounting Arrangement	B3,B35,B5,V1,B14,B34
Insulation Class/Temp.Rise	F/B,H/B
Protectionclass	IP54 IP55 IP56 IP66
Ambient Temp.	-10ºC~40ºC
Operationmode	Electric Motor
Standard	IEC/GB/DIN En
Duty	S1
Altitude	≤1000m
Air Humidity	≤60%at a Temp.of 40ºC
Transport Package	Wooden Pallets, Foam&Carton
Specification	405 kg
Origin	Fuzhou City, Fujian Province, China
HS Code	8501520090

Product Description

The Variable frequency Speed regulation Three phase Asynchronous Motors(VSD) are special three - phase asynchronous motors powered by variable - frequency speed - regulating devices. The system composed of these motors and the variable - frequency devices can achieve stepless speed regulation, thereby achieving the goals of energy conservation and automated control.
The VSD series motors feature a squirrel - cage structure and use special Class B and Class C anti - corona enameled wires. This effectively prevents inter - turn short - circuits in the windings caused by the peak voltage generated by the frequency converter, ensuring more reliable operation and convenient maintenance. The motors are equipped with independent axial - flow fans to ensure good cooling performance at different rotational speeds.

• Q Are you a factory or trading company?
• A We are manufacturer located in FuZhou,Fujian,China
• Q Do we make special custom motors?
• A Yes sure
• Q What is your delivery time?
• A Normally, we can deliver the goods within one month. If we need to expedite the delivery, we can deliver the goods within 7-15 days
• Q What's our minimum order quantity?
• A Minimum order for 1 set
• Q How long is our shelf life?
• A 12 months
• Q Can I get a lower price if I order large quantities?
• A Yes, cheaper prices with more bigger quantity orders.
• Q How can you guarantee the production quality ?
• A We checked strictly before sending, will produce free of charge if it is quality problem from our side

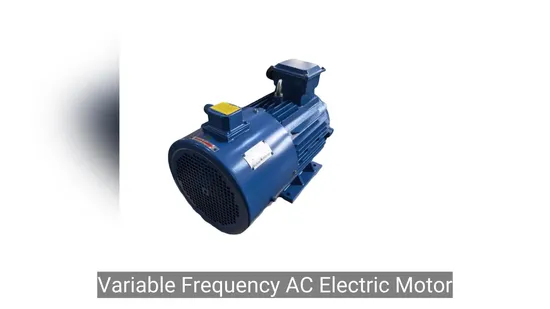

Variable frequency speed regulation three-phase asynchronous motors(VSD)

Detailed Photos

Product Parameters

B3 (IC411) Mounting And Overall Dimensions

Frame size	poles	Mounting dimensions(mm)										Overall dimensions(mm)
		A	B	C	D	E	F	G	H	K	DH	AB	AC	HD	L
71	2,4,6	112	90	45	14	30	5	11	71	7	M5*13	136	139	197	314
80	2,4,6,8	125	100	50	19	40	6	15.5	80	10	M6*16	158	157	214	365
90S	2,4,6,8	140	100	56	24	50	8	20	90	10	M8*20	180	176	233	385
90L	2,4,6,8	140	125	56	24	50	8	20	90	10	M8*20	180	176	233	409
100L	2,4,6,8	160	140	63	28	60	8	24	100	12	M10*20	198	196	260	465
112M	2,4,6,8	190	140	70	28	60	8	24	112	12	M10*25	230	220	292	488
132S	2,4,6,8	216	140	89	38	80	10	33	132	12	M12*30	262	258	331	564
132M	2,4,6,8	216	178	89	38	80	10	33	132	12	M12*30	262	258	331	598
160M	2,4,6,8	254	210	108	42	110	12	37	160	15	M16*36	313	330	414	718
160L	2,4,6,8	254	254	108	42	110	12	37	160	15	M16*36	313	330	414	762
180M	2,4,6,8	279	241	121	48	110	14	42.5	180	15	M16*36	345	380	447	826
180L	2,4,6,8	279	279	121	48	110	14	42.5	180	15	M16*36	345	380	447	864
200L	2,4,6,8	318	305	133	55	110	16	49	200	19	M20*42	386	420	505	905
225S	4,6,8	356	286	149	60	140	18	53	225	19	M20*40	430	470	545	949
225M	2	356	311	149	55	110	16	49	225	19	M20*40	430	470	545	944
	4,6,8	356	311	149	60	140	18	53	225	19	M20*40	430	470	545	971
250M	2	406	349	168	60	140	18	53	250	24	M20*40	490	510	615	1055
	4,6,8	406	349	168	65	140	18	58	250	24	M20*42	490	510	615	1055
280S	2	457	368	190	65	140	18	58	280	24	M20*40	532	580	670	1150
	4,6,8	457	368	190	75	140	20	67.5	280	24	M20*40	532	580	670	1150
280M	2	457	419	190	65	140	18	58	280	24	M20*40	532	580	670	1191
	4,6,8	457	419	190	75	140	20	67.5	280	24	M20*40	532	580	670	1191
315S	2	508	406	216	65	140	18	58	315	28	M20*42	635	645	845	1380
	4,6,8	508	406	216	80	170	22	71	315	28	M20*40	635	645	845	1410
315M	2	508	457	216	65	140	18	58	315	28	M20*40	635	645	845	1490
	4,6,8	508	457	216	80	170	22	71	315	28	M20*40	635	645	845	1520
315L	2	508	508	216	65	140	18	58	315	28	M20*40	635	645	845	1490
	4,6,8	508	508	216	80	170	22	71	315	28	M20*42	635	645	845	1520
355M	2	610	560	254	75	140	20	67.5	355	28	M20*40	735	735	1000	1845
	4,6,8	610	560	254	95	170	25	86	355	28	M20*40	735	735	1000	1875
355L	2	610	630	254	75	140	20	67.5	355	28	M20*40	735	735	1000	1845
	4,6,8	610	630	254	95	170	25	86	355	28	M20*40	735	735	1000	1875

Applications

Suitable for construction machinery, mining equipment, large agricultural equipment fans, pumps, compressors and other industrial equipment

Our Service

Company Profile

Test Center

Our new laboratory has a strong experimental capacity, including three-phase AC asynchronous motor, variable frequency adjustment motor, AC synchronous motor, single-phase asynchronous motor. Power range :0.25-500KW, frequency :0-500Hz. Can test all motor performance items, high precision and simple control.
