Overview

Basic Info.

Model NO.	XL21
Certification	ISO9001:2000, CCC
Form	Partly-welded Type
Operation Voltage	Low Voltage
Size	3 Uint
Application Range	Power Plants
Shell Material	Steel Plate
Shell Protection Grade	IP55
Brand	Zhegui
Product Name	Power Distribution Cabinet
Orign of Place	Zhejiang, China
Related Voltage	Below 500V
Rated Frequency	50/60Hz
Rated Current	up to 1250A
Certificate	ISO CCC IEC
Color	White
OEM	Offered
MOQ	1PCS
Material	Cold-Roll Steel Sheet
Transport Package	Iron Case/Wooden Case
Specification	800*600*1800
Trademark	Zhegui Electric
Origin	Zhejiang, China
HS Code	8537209000
Production Capacity	200pieces/Week

Packaging & Delivery

Package Size500.00cm * 800.00cm * 1900.00cm Package Gross Weight100.000kg

Product Description

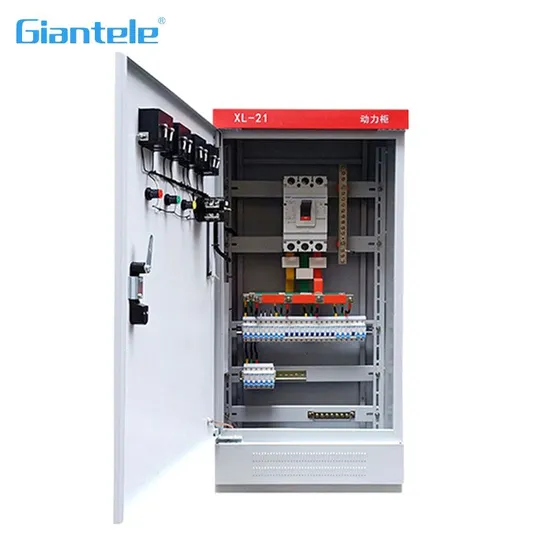

Low voltage power panel

Description: XL-21X LV closed type power panel can be used in AC 500V or lower system of three-phase three-wire,three-phase four-wire, three-phase five-wire for electricity-generating and mine enterprises, also for power, lighting, distribution. XL-21 type low voltage power panel has flexible distribution scheme, convenient combination, good practical performance, new structure and etc.

The technical parameters of the form are for reference only. Customized products can consult online customer service!

Zhejiang ZheGui Electric Co., Ltd established in 2013. We are located in Zhejiang with convenient transportation access and developed electrical market. We are group of private enterprises that hold the production license issued by the former ministry of energy and ministry mechanical and electrical engineering.
The company has nearly 60 million fixed assets and more than 60 employees, covering 23133 square meters. We are specialized in R&D production of complete switchgear of high and low voltage equipment such as prefabricated substation, distribution cabinet/box, drawer cabinet, ring network cabinet, inflatable cabinet, etc.
We owns three CNC bending machine, CNC shearing machine, CNC laser cutting machine and a series of advanced production equipment to further optimized the product structure and improve the efficiency of production. After nearly 7 years of development, it has passed ISO 9001-2000 quality system certification. All items produced by our own factory, so our advantages are: reliable quality and reasonable price. Gather world's energy to delight your business. It's honorable for Zhegui to share your progress, brilliance and success!

Q1: Are you a factory or trading companyA1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.

Q2: How does your factory do regarding quality control?A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?A3:Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.

Q5: What is the price of shipping?A5: Depending upon the port of delivery, prices vary.

Customized products can consult online customer service! PRODUCT DETAILS

1. Main electrical performance shall completely comply with regulations of IEC60439-1:1992, GB7251.1-1997.

2. The auxiliary circuit has functions of local/remote, remote, automatic control and in-site/remote, remote control switch. The contractor can adopt DC protection.

3. Receiving the main switch has optional protection of instart trip and pyromagnetic trip. Can cancel instant protection for matching next class main-switch, avoid skip-class tripping, and has functions of motor/manual operation and automatic switch.

4. Main switch of the feeding circuit has the protection of instant trip and pyromagnetic trip. Can add fault protection if customer required

5. The motor control circuit has the protection of short-circuit instant. overload, Undervoltage release and phase-break.

6. Ammeter and voltage meter for the incoming circuit.

TECHNICAL PARAMETER

No.	Item	Unit	Date
1	Main circuit rated voltage	V	AD:400
2	Auxiliary circuit rated voltage	V	AC:220,380
3	Rated frequency	Hz	50/60
4	Rated insulation voltage	V	660
5	Rated current	A	W1250

THE USE OF CONDITIONS

1. Altitude: <2000m

2. The indoor environment shall be non-ash, non-corrosion gas, and rainwater-proof

3. Ambient temperature:-25ºC-+40ºC, the measured average temp. in 24 hours: 35ºC; the temp. under storage and transportation condition:-25ºC-+55ºC, the temp. in short time <70ºC

4. Relative humidity under the highest temp. of 40ºC:<50%

5. No vibration and the oblique mounting angle: <5ºC
